Description
| Weight: | 350kg |
|

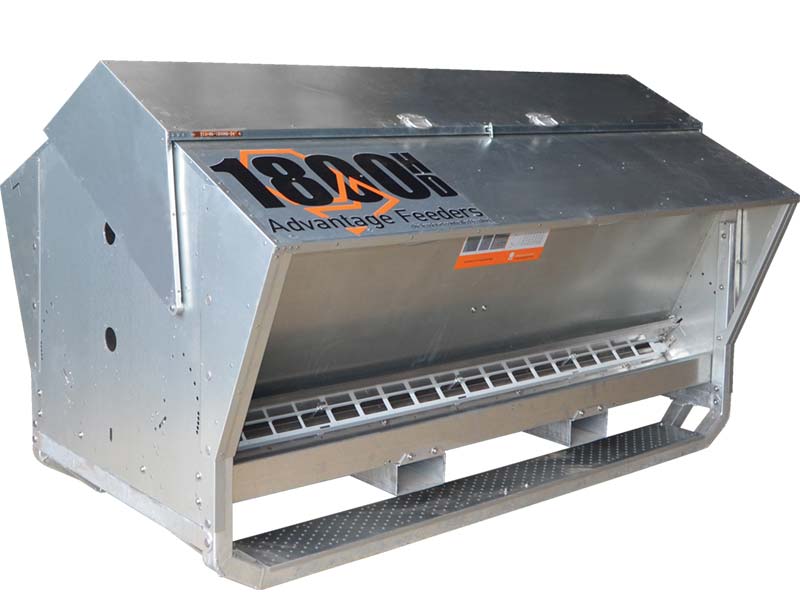

Dimensions at sheep height :
|
2440 x 1650 x 1250 (LxWxH)
|
|

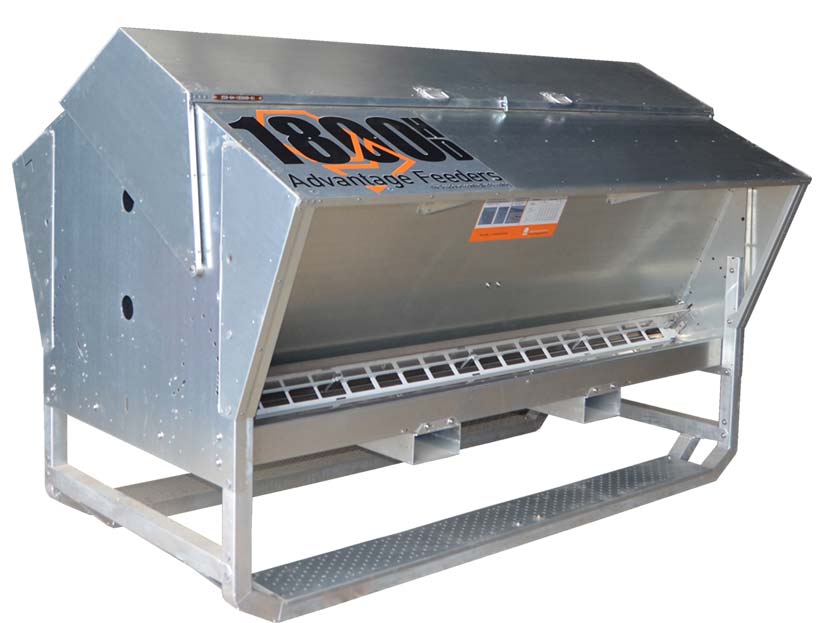

Dimensions at cattle height:
|
2440 x 1650 x 1450 (LxWxH)
|
|

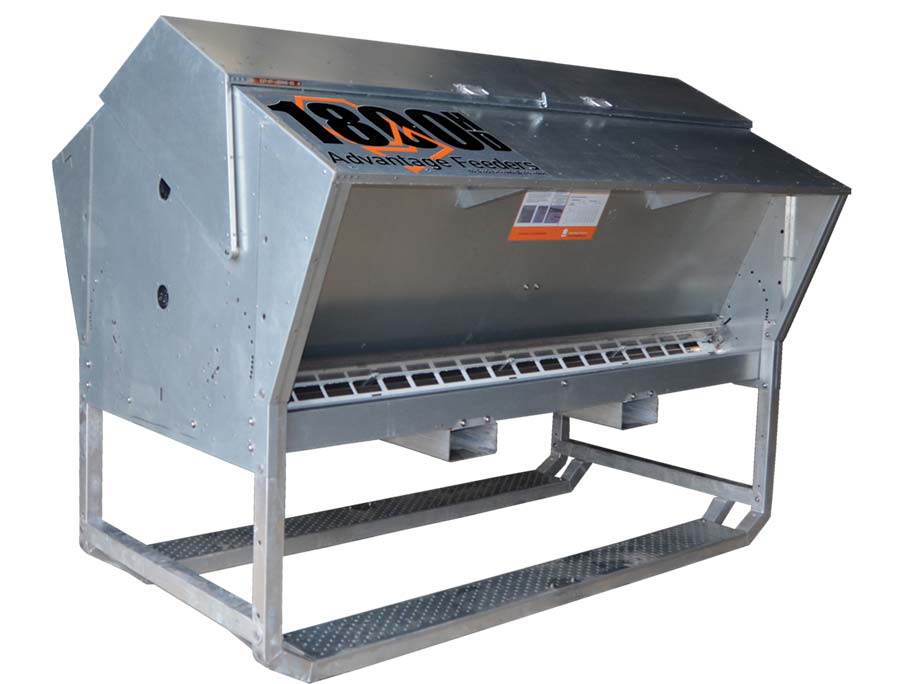

Dimensions at extended cattle height:
|
2440 x 1650 x 1650 (LxWxH)
|
|
Flat-pack dimensions:
|
2440 x 1160 x 280 (LxWxH)
|
|
Feed Volume:
|
1800 litres
|
|
Feed weight – wheat/lupins:
|
1400kg
|
|
Feed weight – barley/pellets:
|
1150kg
|
|
Feed weight – oats:
|
900kg
|
| Ewes or lambs (paddock): | 200-250 |
| Ewes or lambs (feedlot): |
120-150
|
| Ewes and lambs (creep feeding): |
200-250 Combined
|
| Cattle or calves (paddock): |
40-50
|
| Cattle (feedlot): |
30-35
|
| Goats (paddock): |
200-250
|
| Deer (paddock): | 120-150 |
| Pigs: |
120-150
|
- Reinforced stainless steel troughs
- Reinforced stainless steel upper adjusters
- Reinforced stainless steel lower adjusters
- 2x adjuster guards standard
- Adjuster guard housing when not in use
- 4x 60mm SHS skids
- High stability with hopper wholly over skids
- 2x 65mm SHS braces between the skids
- Hot gal dipped skids
- Anti-slip platform between skids
- Laser cut corners in skids to prevent rust
- Z275 sheetmetal
- Rain protection reinforcing
- Side wall bracing
- Channel roof pivot bracket
- 2x 200×100 RHS tine guides
- Adjustable width tine guides
- 6x adjuster braces
- Dual tab adjuster braces
- 4x locking bolts on the lower adjusters
- Adjuster guard locking system
- Dual positioned adjuster guard for dusty feeds
- 4x 75mm round sight glasses
- Vertical side wall bracing for easy feed flow
- 2x volume stickers
- Adjust feeder height in just 15 minutes
- Cleaning tool supplied
- Tube spanner supplied
- Secure housing for tools
- 2380mm trough length

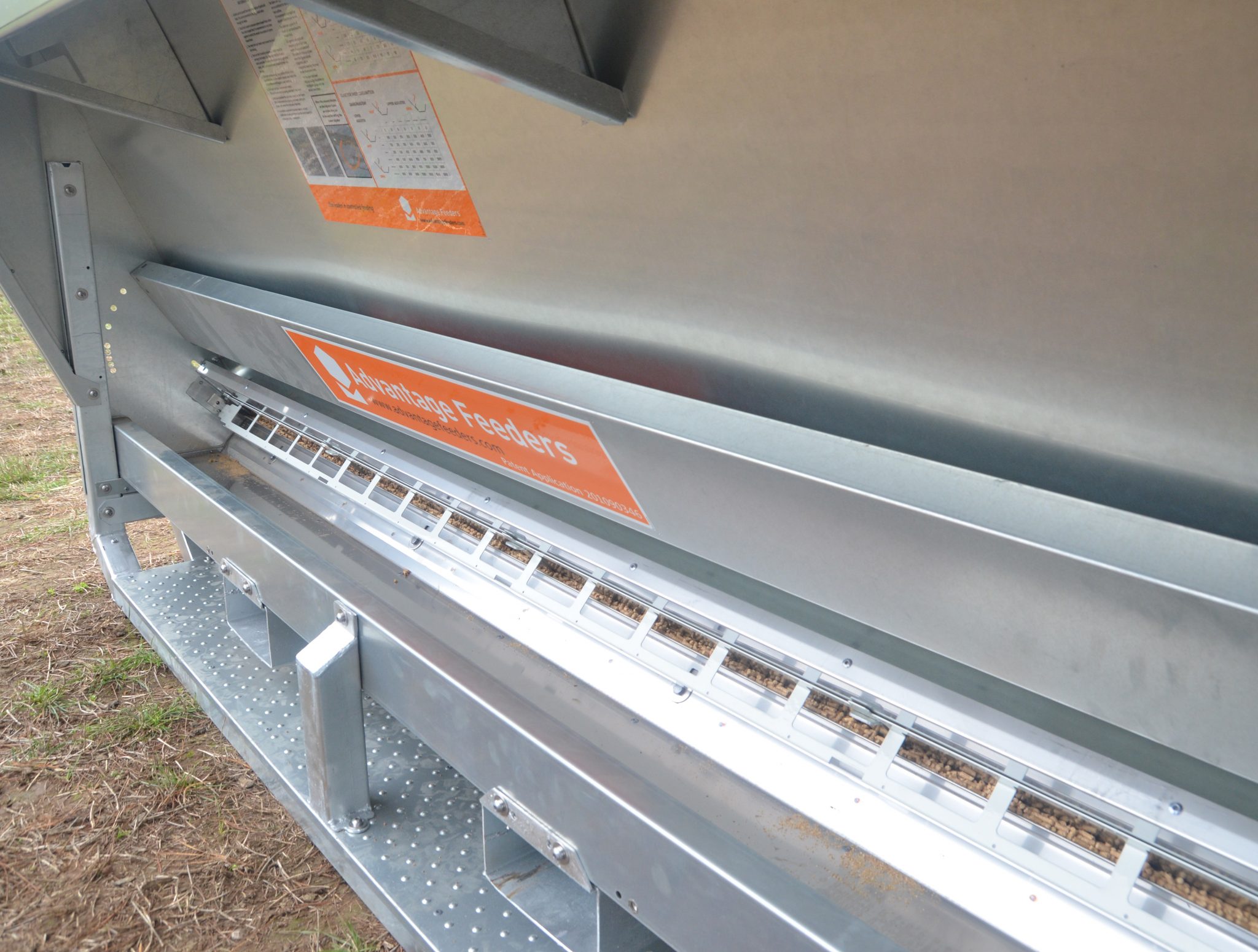

- Painted notch system on the adjusters
- Deep 110mm trough depth
- Gutters on side walls drain out of feeder
- Weather protection over the troughs
- Reinforced roof edges
- Mineral attachment option
- Calf creep feeding gate option
- Lamb creep feeding panel option
- Rubber mat option
- 2 year extended warranty
- 30 day money back guarantee
- Standard operating procedure supplied
- User guide supplied
- Trial reports available
- Purchase flat-packed or assembled
