M1800HD

SKU: N/A Categories: ,

Stronger, Last Longer, More control

  • Stainless Steel parts
  • Precise 3 way saliva restriction system
  • Load Sharing Suspension
  • Tow at 100km/h
  • 2 year warranty*

This product is currently out of stock and unavailable.

Description

Weight: 500kg

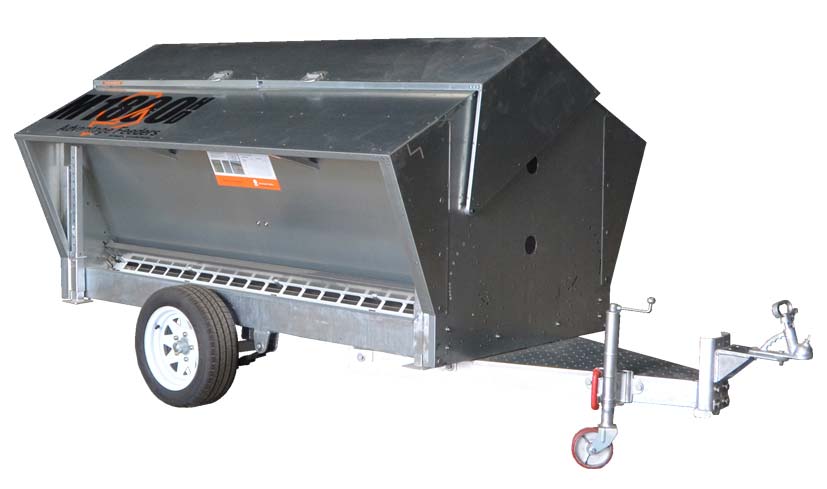

Dimensions at sheep height :
3660x1650x1250 (LxWxH)

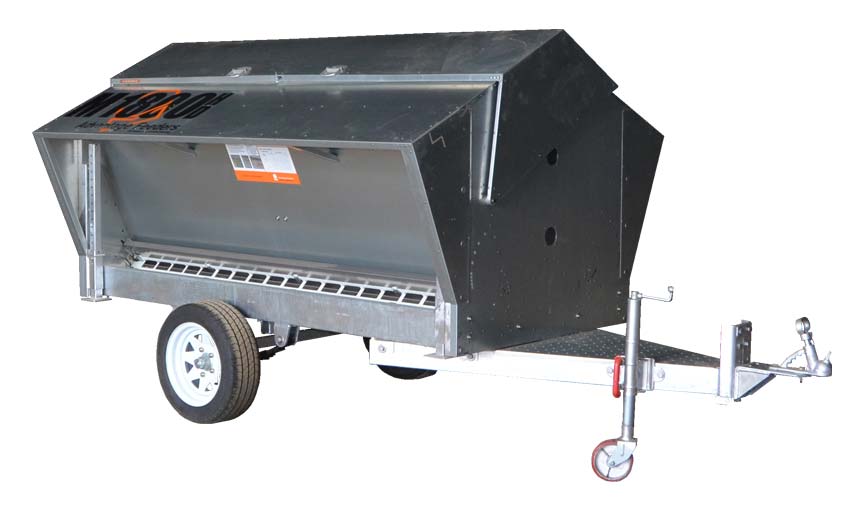

Dimensions at cattle height:
3660x1650x1450 (LxWxH)
Flat-pack dimensions: 2440x1160x420 (LxWxH)
Feed Volume: 1800 litres
Feed weight – wheat/lupins: 1400kg
Feed weight – barley/pellets: 1150kg
Feed weight – oats: 900kg
Axle rating: 1500kg
Spring Rating: 1500kg
Tyre rating: 1850kg
Tyre size:  195/55R13C
Coupling rating:  2000kg
Ewes or lambs (paddock): 200-250
Ewes or lambs (feedlot):
120-150
Ewes and lambs (creep feeding):
 200-250 combined
Cattle or calves (paddock):
40-50
Cattle (feedlot): 30-35
Goats (paddock): 200-250
Deer (paddock): 120-150
Pigs: 120-150
  • Reinforced stainless steel troughs
  • Reinforced stainless steel upper adjusters
  • Reinforced stainless steel lower adjusters
  • 2x adjuster guards standard
  • Adjuster guard housing when not in use
  • 4x 40mm SHS stands
  • High stability with hopper wholly over wheels
  • Spring suspension
  • Three axle height options
  • Channel reinforced trough
  • Z275 sheetmetal
  • 45 degrees angled trough
  • 100mm feed flow area
  • Rain protection reinforcing
  • Side wall bracing
  • Channel roof pivot bracket
  • 6x adjuster braces
  • Dual tab adjuster braces
  • 4x locking bolts on the lower adjusters
  • Adjuster guard locking system
  • Dual positioned adjuster guard for dusty feeds
  • 4x 75mm round sight glasses
  • Vertical side wall bracing for easy feed flow
  • 2x volume stickers
  • Adjuster feeder height in just 30 minutes
  • Cleaning tool supplied
  • Tube spanner supplied
  • Secure housing for tools
  • 2x new tyres
  • Pivot up jockey wheel bracket
  • Cast iron wheel on jockey wheel
  • 2x safety chains supplied
  • 2380mm trough length
  • Painted notch system on the adjusters
  • Drop lock pin roof locking system
  • Deep 110mm trough depth
  • Gutters on side walls drain out of feeder
  • Weather protection over the troughs
  • Reinforced roof edges
  • Mineral attachment option
  • Calf creep feeding gate option
  • Lamb creep feeding panel option
  • Rubber mat option
  • 2 year extended warranty
  • 30 day money back guarantee
  • Standard operating procedure supplied
  • User guide supplied
  • Trial reports available
  • Purchase flat-packed or assembled

Additional information

Heights

Sheep Height, Cattle Height, Extended Cattle Height
